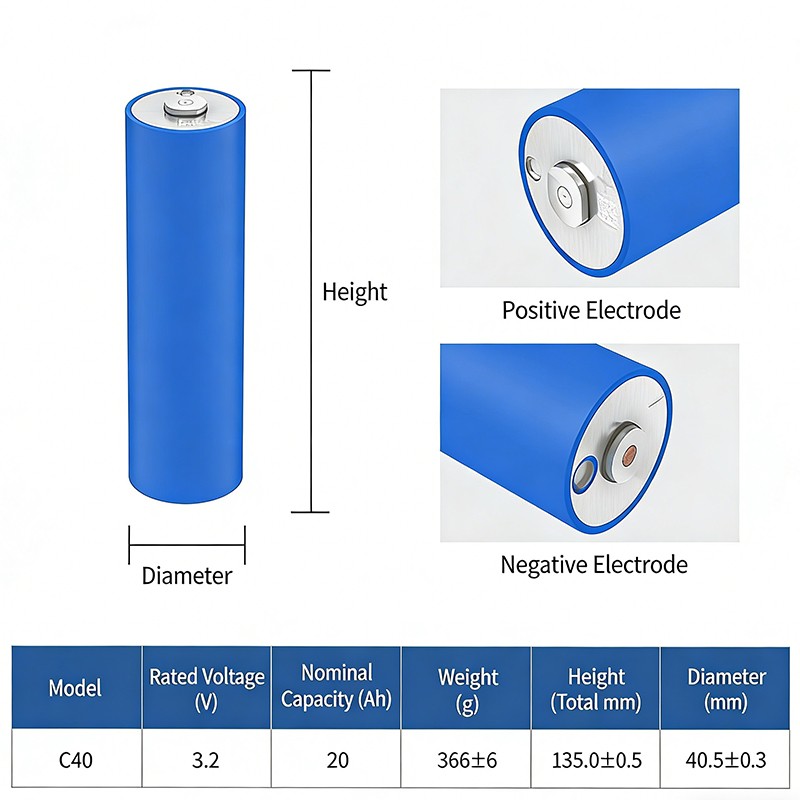

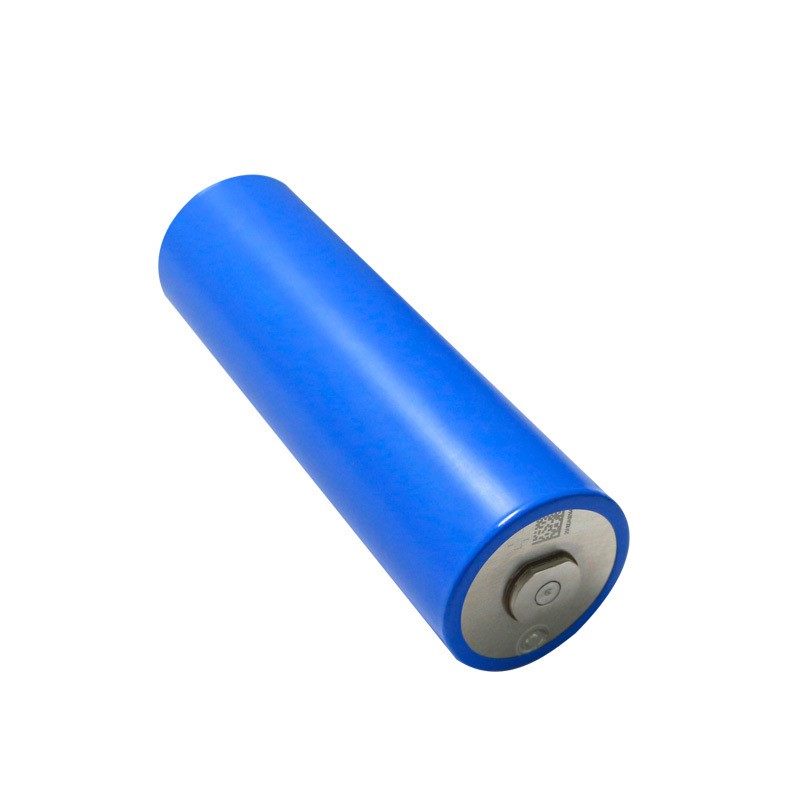

3.2V 40135 20Ah LiFePO4 Cell

Product Item : LNC40135-C40
Category： LiFePO4 Cells
Model: LNC40135-C40
Voltage: 3.2V
Capacity:20Ah
Brand: EVE
Product description：Reliable 40135 LiFePO4 Battery and High-Cycle LFP Cell 20Ah supplier for B2B bulk orders. Industrial-grade 3.2V LiFePO4 cells with deep-cycle durability for solar & marine systems.
INQUIRY EMAIL

Product Specifications

Battery Specifications

Item	Specifications	Remarks
0.33C Capacity@3650~2500mV	≥20000 mAh	0.33C Discharge
1C Capacity@3650~2500mv	≥19500 mAh	1C Discharge
AC-IR	≤1.9 mΩ	AC 1 kHz@25℃ 30%SOC
DC-IR	≤6 mΩ	2C Discharge 30s@25℃ 30%SOC
End-of-Charge Voltage	3650 mV	/
End-of-Charge Current	1000 mA	0.05C
End-Of-Discharge Voltage	T>0℃@2500 mV；T≤0℃@1800 mV	/
Nominal Voltage	3220 mV（0.33C）；3200 mV（0.5C）；3130 mV（1C）	-
Standard Charging Current	10000 mA	0.5C
Fast Charging Current	20000 mA	Max 80%SOC
Standard Discharging Current	10000 mA	0.5C
Max Discharging Current	60000 mA	3C Pulse 30s
Range of Operating Temperature（Charging Temperature）	0~55℃	Refer to Chapter 4.3.1.1
Range of Operating Temperature（Discharging Temperature）	-20~60℃	Refer to Chapter 4.3.2.1
Range of Operating Temperature（Storage Humidity）	≤70% RH	/
Monthly Self-Discharge Rate	≤3.0 %/month	/
