Continuous normal discharge at -40°C – reliable power in extreme cold environments.
Sustained 2C discharge at -40°C – high power even in freezing conditions.
>3000 cycles at 1C charge / 1C discharge – durable and long-lasting performance.

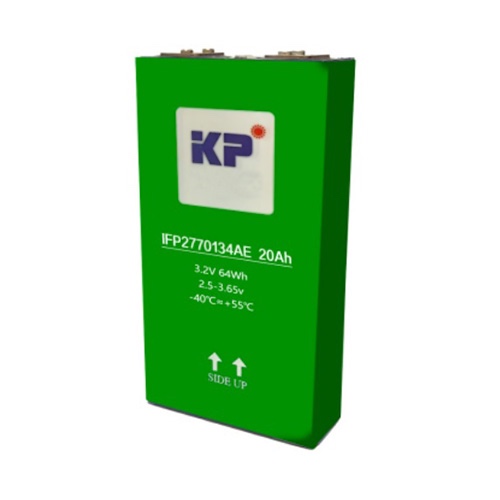

| Parameter | Value | Test / Operating Condition |
|---|---|---|
| Nominal Capacity | 20 Ah | Standard rating |
| Nominal Voltage | 3.2 V | Standard rating |
| Charge Temperature Range | -10°C ~ 45°C | Continuous charging operation |
| Discharge Temperature Range | -40°C ~ 55°C | Continuous discharging operation |
| Maximum Continuous Charge Current | 0.2 C | At -10°C ambient temperature |
| Maximum Continuous Charge Current | 2 C | At 25°C ambient temperature |
| Maximum Continuous Discharge Current | 2 C | At -40°C ambient temperature |
| Maximum Continuous Discharge Current | 5 C | At 25°C ambient temperature |
| Maximum Pulse Discharge Current | 8 C | At 25°C ambient temperature, 10 seconds |
| Cycle Life | 2500 cycles | 1C charge / 1C discharge, at 25°C |
| Parameter | Unit / Condition | 2770134AE | 3470150AE (25Ah) | 3470150AE (30Ah) | 36130141AE | 36130216AE |
|---|---|---|---|---|---|---|
| Nominal Capacity | Ah | 20 | 25 | 30 | 50 | 100 |
| Nominal Voltage | V | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| Operating Temperature Range – Charge | °C | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 | -45 ~ 45 | -45 ~ 45 |
| Operating Temperature Range – Discharge | °C | -40 ~ 55 | -40 ~ 55 | -40 ~ 55 | -50 ~ 60 | -50 ~ 60 |
| Max Continuous Charge Current | Low temp | 0.2C @ -10°C | 0.2C @ -10°C | 0.2C @ -10°C | 0.01C @ -45°C | 0.01C @ -45°C |
| At 25°C | 2C | 6C | 2C | 3C | 3C | |
| Max Continuous Discharge Current | Low temp | 2C @ -40°C | 5C @ -40°C | 2C @ -40°C | 0.5C @ -50°C | 0.5C @ -50°C |
| Mid temp | — | 8C @ -20°C | — | — | — | |
| At 25°C | 5C | 15C | 5C | 5C | 5C | |
| Max Pulse Discharge Current | Condition | 8C @ 25°C, 10s | 40C @ 25°C, 10s | 8C @ 25°C, 10s | 8C @ 25°C, 10s | 8C @ 25°C, 10s |
| Cycle Life | Condition | 2500 cycles @ 1C/1C, 25°C | 3000 cycles @ 1C/1C, 25°C | 2500 cycles @ 1C/1C, 25°C | 3500 cycles @ 1C/1C, 25°C | 3500 cycles @ 1C/1C, 25°C |
Need custom packs? Contact us: info@lnclibattery.com
