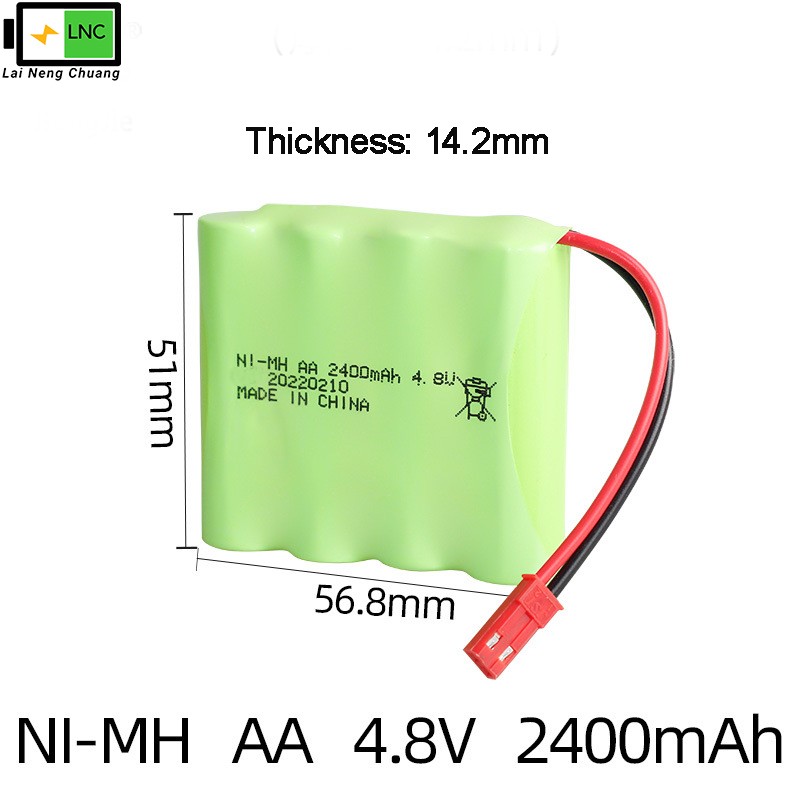

Model: 4.8V 2400mAh Ni-MH Battery Pack
| Specification | Value |
|---|---|
| Product Name | 4.8V 2400mAh Ni-MH Battery Pack |
| Nominal Voltage | 4.8V |
| Nominal Capacity | 2400mAh |
| Assembly Method | Inline Arrangement, 2+2 Side-by-Side, 2+2 Mating |
| Weight (All Configurations) | 93.5g |
| Dimensions (Inline) | 56.8×51×14.2mm (L×W×H) |
| Dimensions (2+2 Side-by-Side) | 51×28.5×28.5mm (L×W×H) |
| Dimensions (2+2 Mating) | 100×28.5×14.2mm (L×W×H) |
| Cell Voltage | Remaining Capacity | Status Indicator |
|---|---|---|
| 1.44V | 100% | Full |
| 1.30V | 75% | Good |
| 1.20V | 50% | Medium |
| 1.10V | 25% | Low |
| 0.90V | 5% | Critical |
| 0.80V | 0% | Empty |
For Ni-MH Battery: Do NOT let a single cell's voltage drop below 0.8V — this will cause permanent damage or total battery failure.
| Charging Current Range | Charging Time Formula |
|---|---|
| ≤ 5% of Capacity | Battery capacity (mAh) × 1.6 ÷ Charging current (mA) |
| 5% - 10% of Capacity | Battery capacity (mAh) × 1.5 ÷ Charging current (mA) |
| 10% - 15% of Capacity | Battery capacity (mAh) × 1.3 ÷ Charging current (mA) |
| 15% - 20% of Capacity | Battery capacity (mAh) × 1.2 ÷ Charging current (mA) |
| > 20% of Capacity | Battery capacity (mAh) × 1.1 ÷ Charging current (mA) |
Use only NiMH/NiCD-specific chargers. Do NOT use Li-ion chargers. Never charge batteries unsupervised. Ensure charging surface is heat-resistant.
