3.6V 21700 5000mah Li Ion Cell

Product Item : LNC21700-50E
Category： NMC Cells
Model: LNC21700-50E
Voltage: 3.6V
Capacity: 5000mAh
Brand: EVE
Product description：Ultra high-capacity 21700 5000mAh 3.6V cell. Designed for extended runtime in demanding applications and custom battery packs. The top choice for energy-focused projects. Explore specifications and bu
INQUIRY EMAIL

Product Specifications

Item	Specification
Nominal Discharge Capacity	5000mAh Charge:1A, 4.20V, CCCV 100mA cut-off Discharge: 1A, 2.50V DC cut-off
Minimum Discharge Capacity	4900mAh Charge: 1A, 4.20V, CCCV 100mA cut-off Discharge: 1A, 2.50V DC cut-off
Nominal Voltage	3.60V
Standard Charge	CCCV, 1A, 4.20±0.05V, 100mA cut-off
Rapid Charge	CCCV, 2.5A, 4.20±0.05V, 250mA cut-off
Standard Discharge	DC, 1A, 2.50V cut-off
Max. Continuous Discharge Current	DC,15A, 2.50V cut-off
Charge/Discharge Voltage Range	4.20~2.50V
Cell Weight	71.0g Max

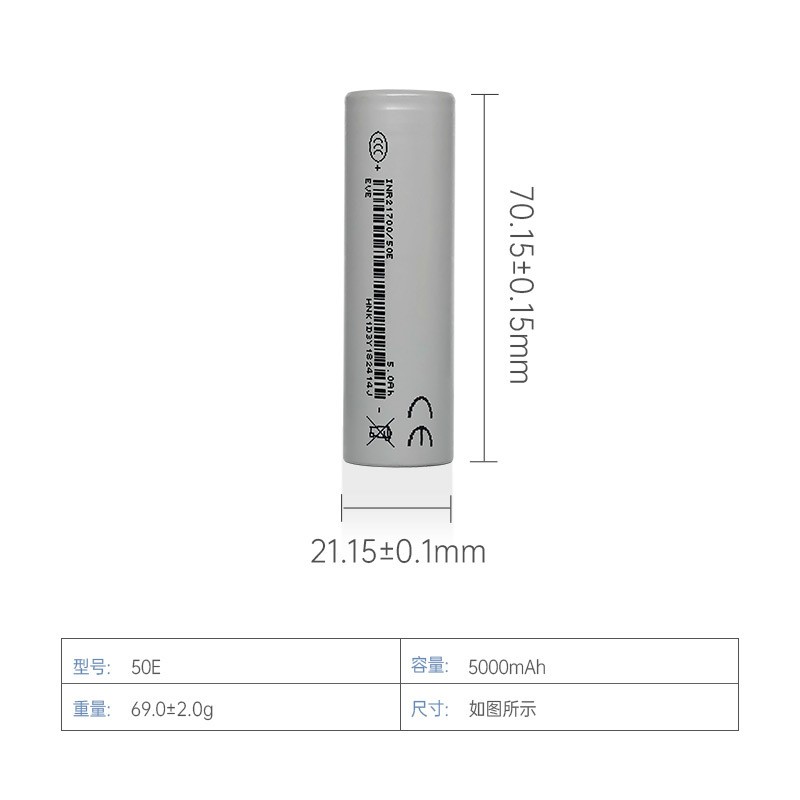

Cell Dimensions	Height: 70.15±0.15mm Diameter: 21.15±0.10mm
Operation Temperature (Cell Surface Temperature)	Ambient Temperature Charge: 0 to 45 ℃ Discharge: -20 to 60℃ Charge Temperature: 0 to 60℃ (recommended recharge release <45℃) Discharge Temperature: -20 to 70℃ (recommended re-discharge release <60℃)
Storage Temperature (At Shipping SOC)	1 year: -20~25℃ 3 months: -20~45℃ 1 month: -20~60℃
