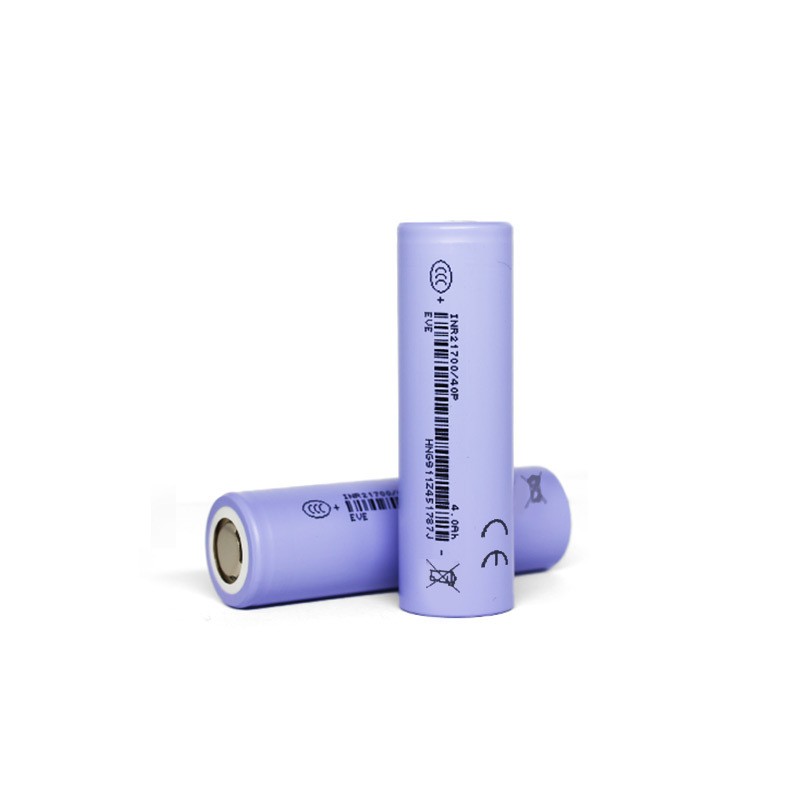

3.6V 21700 4000mAh Li ion Cell

Product Item : LNC21700-40P
Category： NMC Cells
Model: LNC21700
Voltage: 3.6V
Capacity: 4000mAh
Brand: EVE
Product description：Maximize power and runtime with our 21700 4000mAh 3.6V battery. A high-drain Li-ion cell perfect for demanding flashlights, high-performance vaping, and e-bikes. Experience superior capacity and stabl
INQUIRY EMAIL

Product Specifications

Item	Specification
Nominal Discharge Capacity	4000mAh Charge: 2.0A, 4.20V, CCCV 100mA cut-off Discharge: 0.8A, 2.50V DC cut-off
Minimum Discharge Capacity	3950mAh Charge: 2.0A, 4.20V, CCCV 100mA cut-off Discharge: 0.8A, 2.50V DC cut-off
Nominal Voltage	3.60V
Standard Charge	CCCV, 2.0A, 4.20±0.05V, 100mA cut-off
Rapid Charge	CCCV, 6.0A, 4.20±0.05V, 100mA cut-off
Standard Discharge	DC, 0.8A, 2.50V cut-off
Max. Continuous Discharge Current	DC, 50A, 2.50V cut-off T_Recommended: 75℃ T_max: 80℃
Charge/Discharge Voltage Range	4.20~2.50V
Cell Weight	70.0g Max

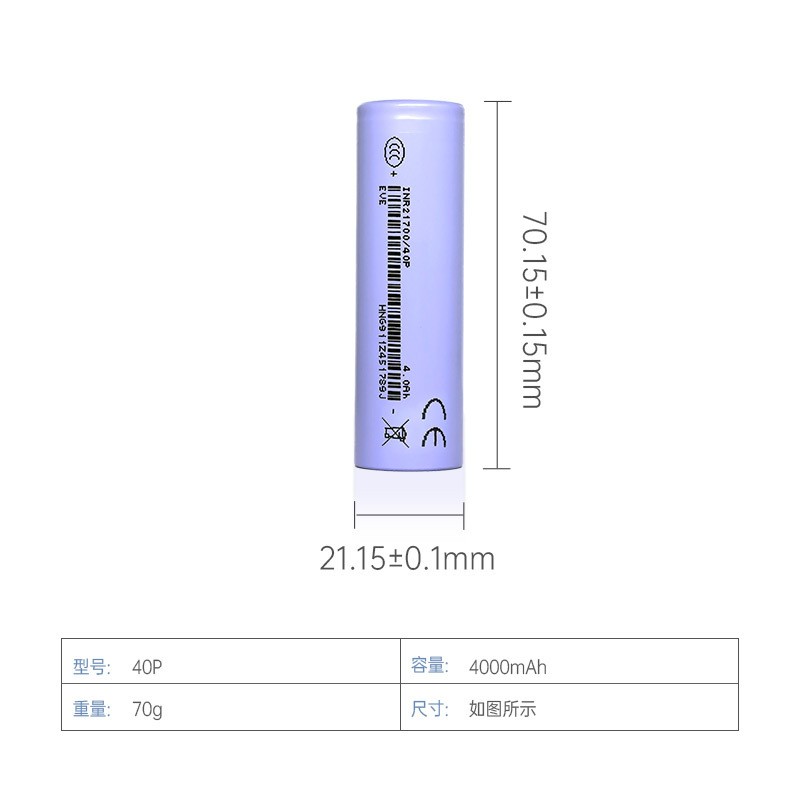

Cell Dimensions	Height: 70.15±0.15mm Diameter: 21.15±0.10mm
Operation Temperature (Cell Surface Temperature)	Ambient Temperature Charge: 0 to 45 ℃ Discharge: -20 to 60℃ Charge Temperature: 0 to 60℃ (recommended recharge release <45℃) Discharge Temperature: -20 to 80℃ (recommended re-discharge release <60℃)
Storage Temperature (At Shipping SOC)	1 year: -20~25℃ 3 months: -20~45℃ 1 month: -20~60℃
