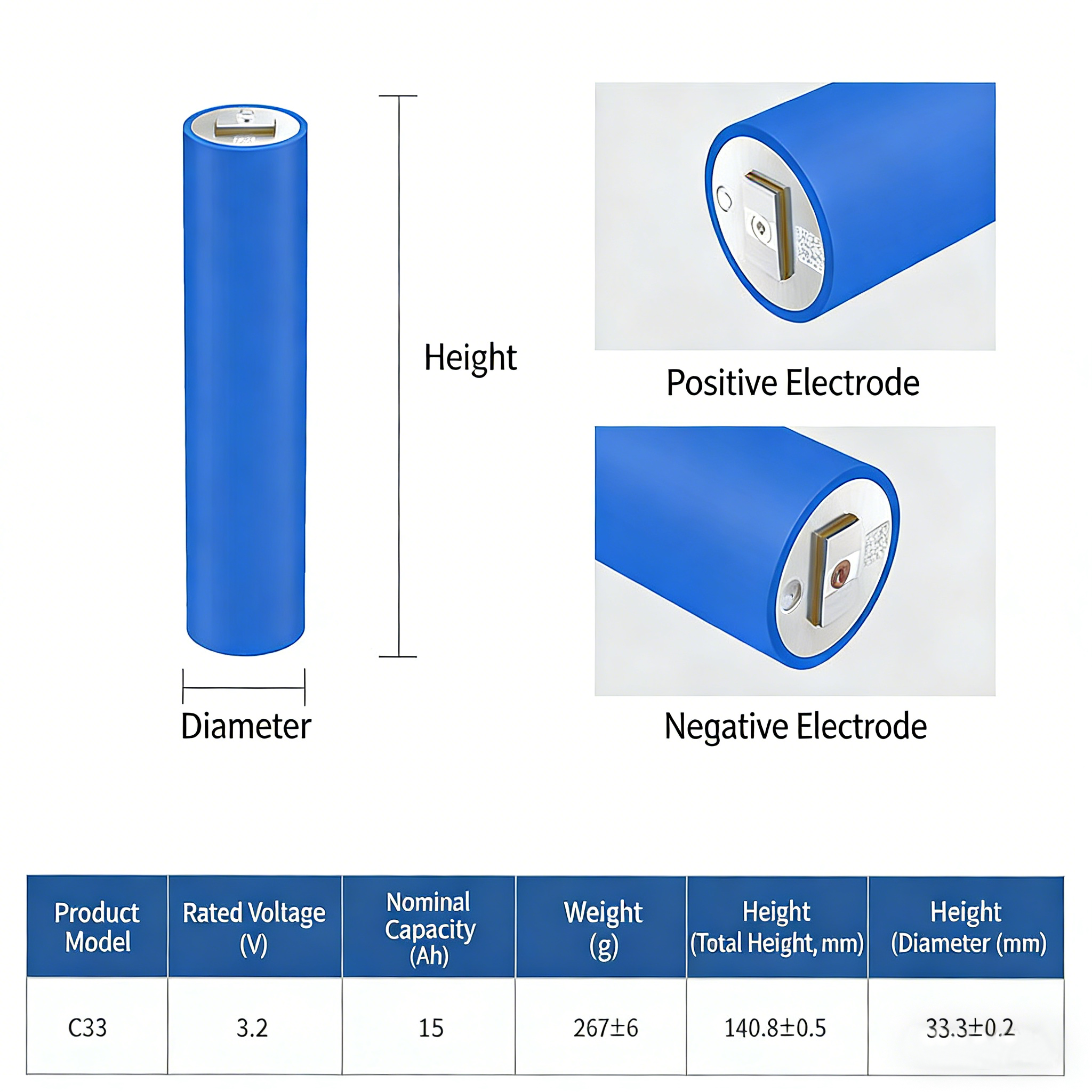

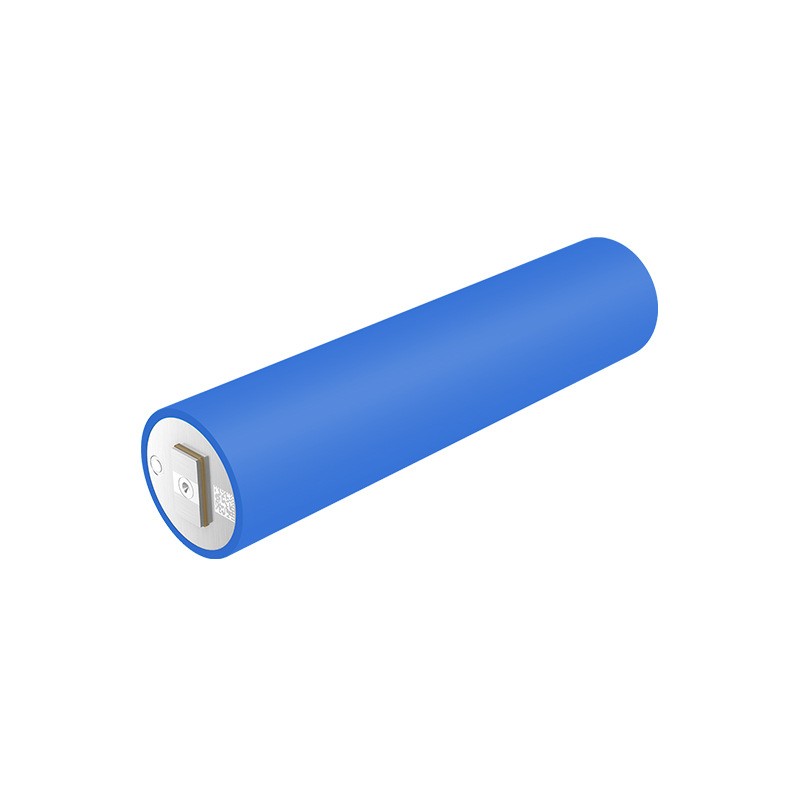

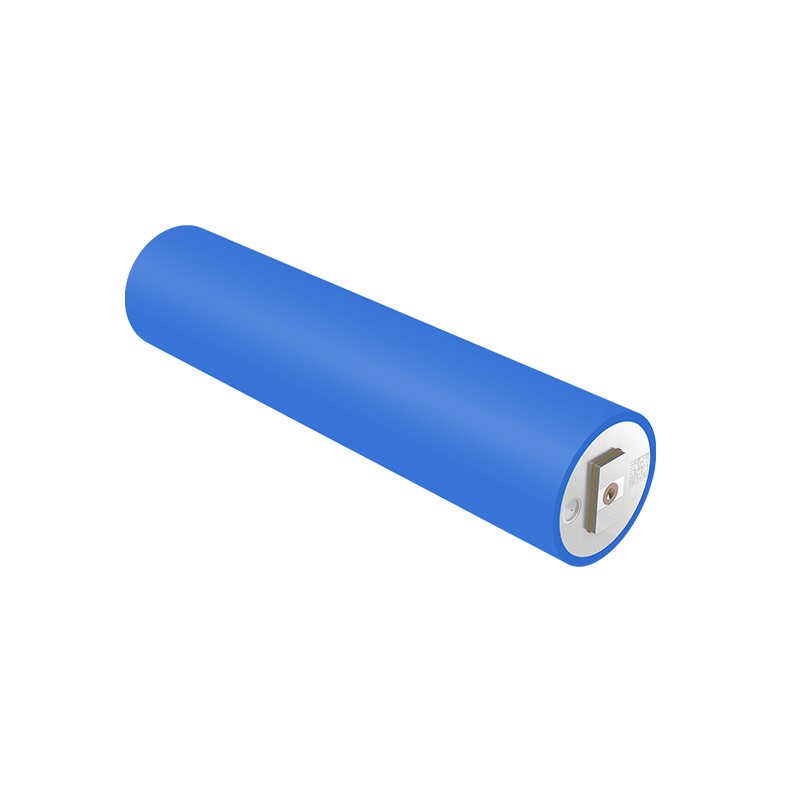

3.2V IFR33140 15Ah LiFePO4 Cell

Product Item : LNC33140-C33
Category： LiFePO4 Cells
Model: LNC33140-C33
Voltage: 3.2V
Capacity:15Ah
Brand: EVE
Product description：Power your project with the 15Ah IFR33140 cell. This 3.2V LiFePO4 battery combines high capacity with the inherent safety of lithium iron phosphate chemistry. Perfect for upgrading energy storage, sol
INQUIRY EMAIL

Product Specifications

Battery Specifications

Item	Specifications	Remarks
Average Capacity@3650~2500mV	15200 mAh	0.33C Discharge
Min Capacity@3650~2500mv	14500 mAh	0.33C Discharge
AC-IR	≤3 mΩ	AC 1 kHz@25℃ 30%SOC
DC-IR	≤8 mΩ	2C Discharge 30s@25℃ 30%SOC
End-of-Charge Voltage	3650 mV	/
End-of-Charge Current	750 mA	0.05C
End-Of-Discharge Voltage	T>0℃@2500 mV；T≤0℃@2000 mV	/
Nominal Voltage	3200 mV	-
Standard Charging Current	7500 mA	0.5C
Fast Charging Current	15000 mA	1C
Standard Discharging Current	7500 mA	0.5C
Max Discharging Current	45000 mA	3C
Range of Operating Temperature（Charging Temperature）	0~55℃
Range of Operating Temperature（Discharging Temperature）	-20~60℃
Range of Operating Temperature（Storage Humidity）	≤70% RH	/
Monthly Self-Discharge Rate	≤3.0 %/month	/
