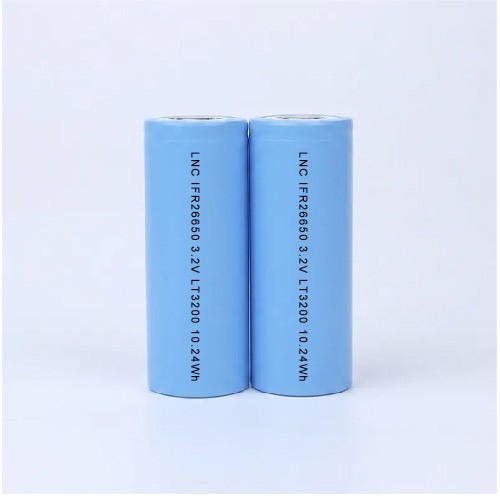

IFR26650 3.2V LT3200 10.24Wh LFP Cell

Product Item : IFR26650 3.2V LT3200
Category： Low Temperature LFP Cells
Model:IFR26650 3.2V LT3200
Voltage: 3.2V
Capacity:3.2Ah
Brand: WTS
Product description：IFR26650 3.2V LT3200 10.24Wh low temperature LFP cell. Direct charging at -30°C, discharging at -50°C with >90% capacity. 16A continuous discharge, GJB4477 certified. Ideal for cold climate EVs, energ
INQUIRY EMAIL

IFR26650 3.2V LT3200 10.24Wh LFP Cell – Extreme Low Temperature Series

Category: Low Temperature LFP Cells | Model: IFR26650 3.2V LT3200 | Voltage: 3.2V | Capacity: 3200mAh (10.24Wh) | Brand: WTS

Power your cold-climate applications with our high-performance IFR26650 3.2V LT3200 10.24Wh LFP Cell. Engineered for extreme low-temperature environments, this LiFePO₄ battery supports direct charging at -30°C without pre-heating and delivers over 90% discharge capacity at -50°C. Built for long cycle life and military-grade safety (GJB4477 certified), this cell is perfect for EVs, energy storage systems, military equipment, and outdoor applications in arctic conditions.

Key Highlights:

-30°C Direct Charging: No pre-heating required – charge directly below freezing without lithium plating, ensuring consistent cycle life.
-50°C High-Efficiency Discharge: Over 90% capacity at -50°C (down to 1.5V) and 95% capacity at -20°C under high current.
Wide Operating Temperature: Reliable discharge from -50°C to +60°C, covering nearly all industrial and outdoor scenarios.
5-10C Continuous Discharge: Sustained high-rate discharge up to 10C even at low temperatures, meeting high-power demands.
GJB4477 Certified Safety: Passes military-grade nail penetration and gunshot tests — no fire, no explosion, maximum reliability.

Product Specifications

Model	IFR26650 3.2V LT3200
Rated Voltage	3.2 V
Rated Capacity	3200 mAh (10.24 Wh)
Max Continuous Discharge Current	16 A (5C) / up to 10C pulse
Charge Current (temp dependent)	T > 0°C: 3C -20°C < T ≤ 0°C: 0.5C -30°C < T ≤ -20°C: 0.2C
Charging Temperature Range	-30°C to +45°C (direct charge at -30°C)
Discharging Temperature Range	-50°C to +60°C
Capacity @ -50°C (0.2C)	>90% (down to 1.5V cut-off)
Capacity @ -20°C (1C)	>95%
Maximum Weight	84 g
Safety Certification	GJB4477 (Nail penetration, gunshot tested)

GJB4477 Military Grade Certified

Passed nail penetration & gunshot tests – no fire, no explosion. Suitable for defense, aerospace, and extreme environment energy storage.

Low Temperature LFP Cells Comparison (26650 Series)

Parameter	LT3200	LT3400	LTP3000	LT3500
Rated Voltage	3.2 V	3.2 V	3.2 V	3.2 V
Rated Capacity	3200 mAh (10.24Wh)	3400 mAh (10.88Wh)	3000 mAh (9.6Wh)	3500 mAh (11.2Wh)
Max Continuous Discharge Current	16 A (5C)	10 A (≈3C)	30 A (10C)	3.5 A (1C)
Charge Current (T dependent)	T > 0°C: 3C \| -20°C < T ≤ 0°C: 0.5C \| -30°C < T ≤ -20°C: 0.2C			T > 0°C: 1C -20°C < T ≤ 0°C: 0.5C -30°C < T ≤ -20°C: 0.2C
Charging Temperature Range	-30°C to +45°C (direct charge at -30°C)			-20°C to +45°C
Discharging Temperature Range	-50°C to +60°C			-40°C to +60°C
Maximum Weight	84 g	86 g	82 g	86 g
