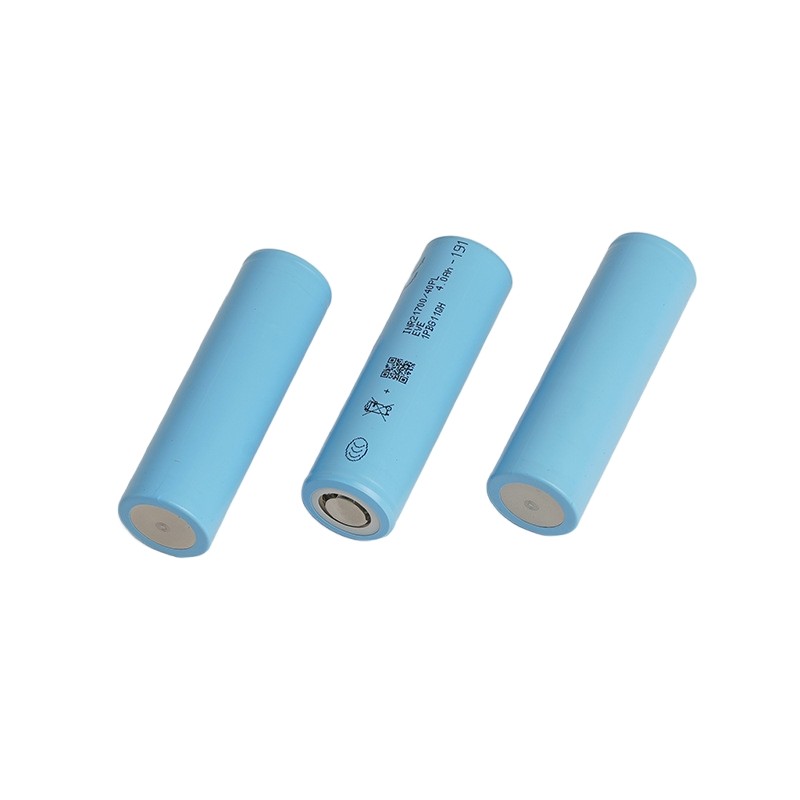

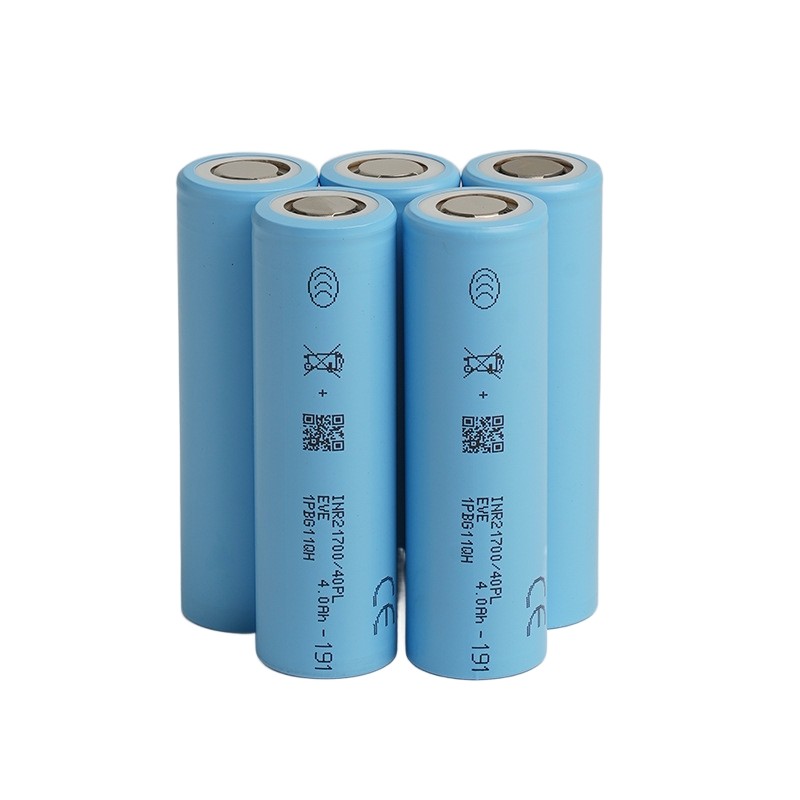

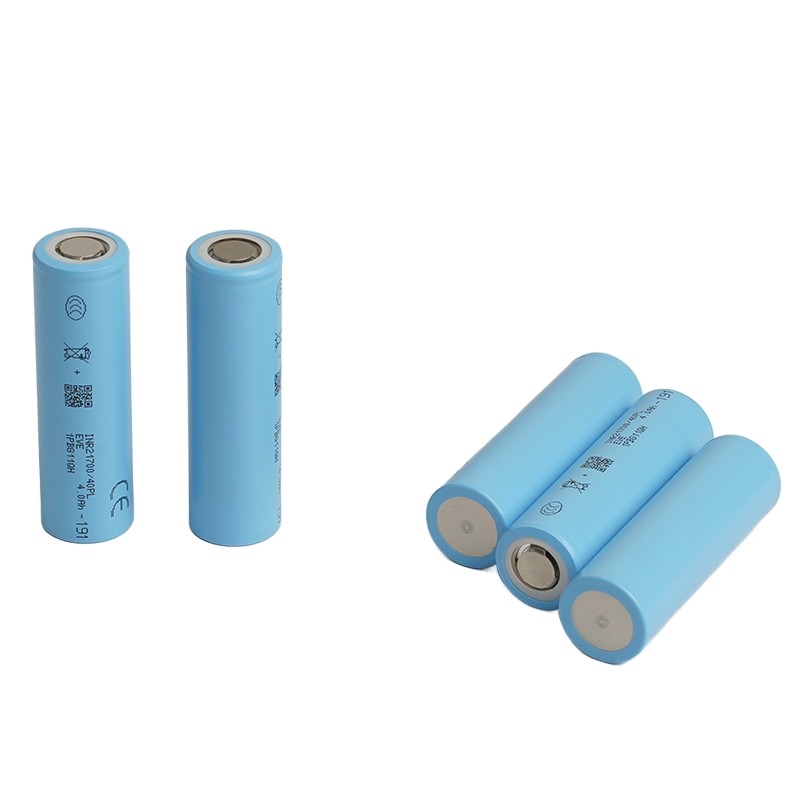

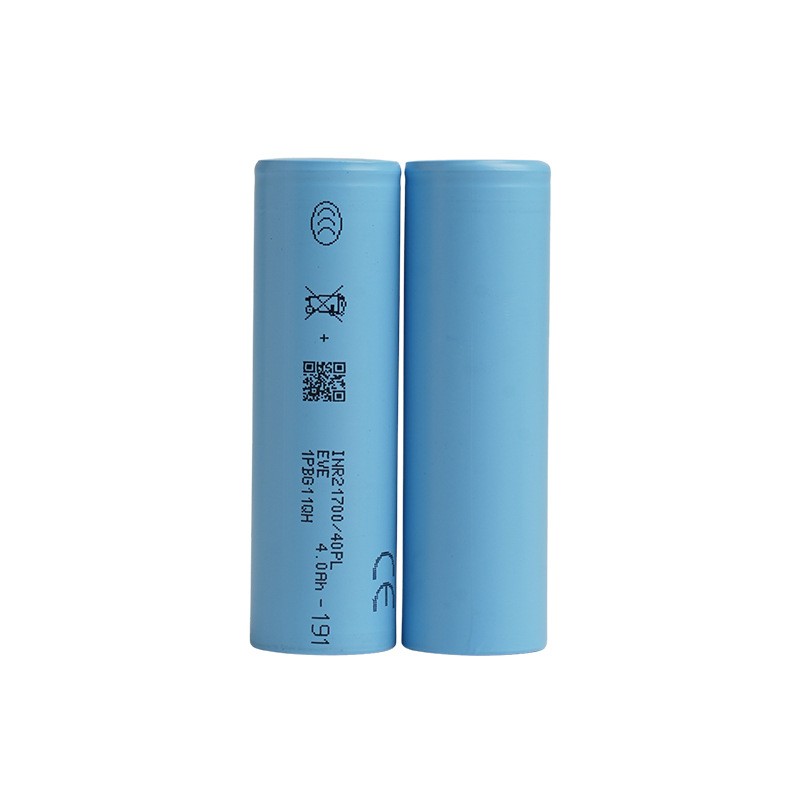

Rechargeable 3.6V 4000mAh 21700 Li-ion Cell with Tabless Electrode for Electronics & Energy Storage

Product Item : LNC21700-40PL
Category： NMC Cells
Model: LNC21700-40PL
Voltage: 3.6V
Capacity: 4000mAh
Brand: EVE
Product description：Explore our high-performance 21700 Li-ion battery. Featuring 4000mAh capacity & innovative tabless electrode technology for 3.6V applications. Enjoy lower resistance, faster charging, and longer lifes
INQUIRY EMAIL

Product Specifications

Item	Specification
Nominal Discharge Capacity	4000mAh Charge: 2.0A, 4.20V, CCCV 100mA cut-off Discharge: 2.0A, 2.50V DC cut-off
Minimum Discharge Capacity	4000mAh Charge: 2.0A, 4.20V, CCCV 100mA cut-off Discharge: 2.0A, 2.50V DC cut-off
Nominal Voltage	3.60V
Standard Charge	CCCV, 2.0A, 4.20±0.05V, 100mA cut-off
Rapid Charge	CCCV, 8.0A, 4.20±0.05V, 100mA cut-off
Standard Discharge	DC, 0.8A, 2.50V cut-off
Max. Continuous Discharge Current	DC, 70A, 2.50V cut-off T_Recommended: 75℃ T_max: 80℃
Charge/Discharge Voltage Range	4.20~2.50V
Cell Weight	67.0g Max
Cell Dimensions	Height: 70.15±0.15mm Diameter: 21.15±0.10mm
Operation Temperature (Cell Surface Temperature)	Ambient Temperature Charge: 0 to 45 ℃ Discharge: -20 to 60℃ Charge Temperature: 0 to 60℃ (recommended recharge release <45℃) Discharge Temperature: -20 to 80℃ (recommended re-discharge release <60℃)
Storage Temperature (At Shipping SOC)	1 year: -20~25℃ 3 months: -20~45℃ 1 month: -20~60℃
