Ni-MH AA 6V 2400mAh With 5559 Connector-SKU10

Product Item : LNC-NM-5S1P2.4AH-SKU-10
Category： Ni-MH Battery Packs
Model: LNC-NM-5S1P2.4AH-SKU-10
Voltage: 6.0V
Capacity: 2400mAh
Brand: LNC
Product description：
INQUIRY EMAIL

LNC Batteries

Professional Battery Solutions

Battery Specifications & Safety Guidelines

Model: 6.0V 2400mAh Ni-MH Battery Pack

Product Specifications

Battery Specifications

Item	Specification
Product Name	6.0V Ni-MH Battery Pack
Nominal Voltage	6.0V
Nominal Capacity	2400mAh
Cell Type	Nickel-Metal Hydride (Ni-MH)
Configuration Options	Linear Arrangement 2+3 Arrangement 1+4 Arrangement

Linear Arrangement Specifications

Parameter	Value
Weight	Approx. 111.0 g
Dimensions (L × W × T)	71.0 × 51.0 × 14.2 mm

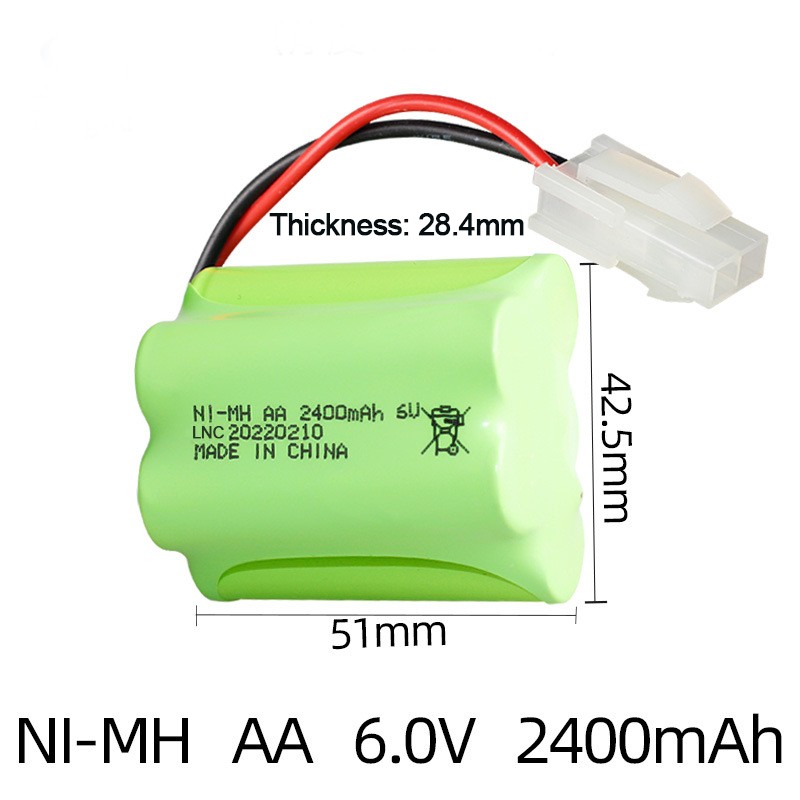

2+3 Arrangement Specifications

Parameter	Value
Weight	Approx. 111.0 g
Dimensions (L × W × T)	51.0 × 42.5 × 28.4 mm

1+4 Arrangement Specifications

Parameter	Value
Weight	Approx. 111.0 g
Dimensions (L × W × T)	51.0 × 56.8 × 28.4 mm

Battery Status Reference

Cell Voltage	Remaining Capacity	Status Indicator
1.44V	100%	Full
1.30V	75%	Good
1.20V	50%	Medium
1.10V	25%	Low
0.90V	5%	Critical
0.80V	0%	Empty

IMPORTANT SAFETY WARNING

For Ni-MH Battery: Do NOT let a single cell's voltage drop below 0.8V — this will cause permanent damage or total battery failure.

Charging Parameters

Charging Current Range	Charging Time Formula
≤ 5% of Capacity	Battery capacity (mAh) × 1.6 ÷ Charging current (mA)
5% - 10% of Capacity	Battery capacity (mAh) × 1.5 ÷ Charging current (mA)
10% - 15% of Capacity	Battery capacity (mAh) × 1.3 ÷ Charging current (mA)
15% - 20% of Capacity	Battery capacity (mAh) × 1.2 ÷ Charging current (mA)
> 20% of Capacity	Battery capacity (mAh) × 1.1 ÷ Charging current (mA)

Usage Precautions

Charging Safety: Keep away from flammable materials during charging
Damaged Batteries: Dispose immediately — do NOT reuse
Avoid Short Circuits: Risk of combustion/explosion
Unattended Operation: Never charge/discharge without supervision

Liability & Warranty

Non-compliance liability rests with user
Manual overcharging damage not covered
Purchase implies acceptance of terms
Follow guidelines for safe operation

Temperature Guidelines

Charge only within 0–45°C
Avoid cell overheating above 60°C
Keep away from heat sources
Store in cool, dry place

CHARGING PRECAUTIONS

Use only NiMH/NiCD-specific chargers. Do NOT use Li-ion chargers. Never charge batteries unsupervised. Ensure charging surface is heat-resistant.

Detailed Safety Guidelines

Storage & Handling

Keep away from liquids and damp environments
Store out of children's reach
Perform charge-discharge cycle every 3 months for unused batteries
Check voltage before charging/use

Safety Warnings

Do NOT disassemble battery pack or modify wiring
Do NOT short-circuit the battery
Do NOT touch leaking batteries
If electrolyte contact occurs, rinse immediately with water
