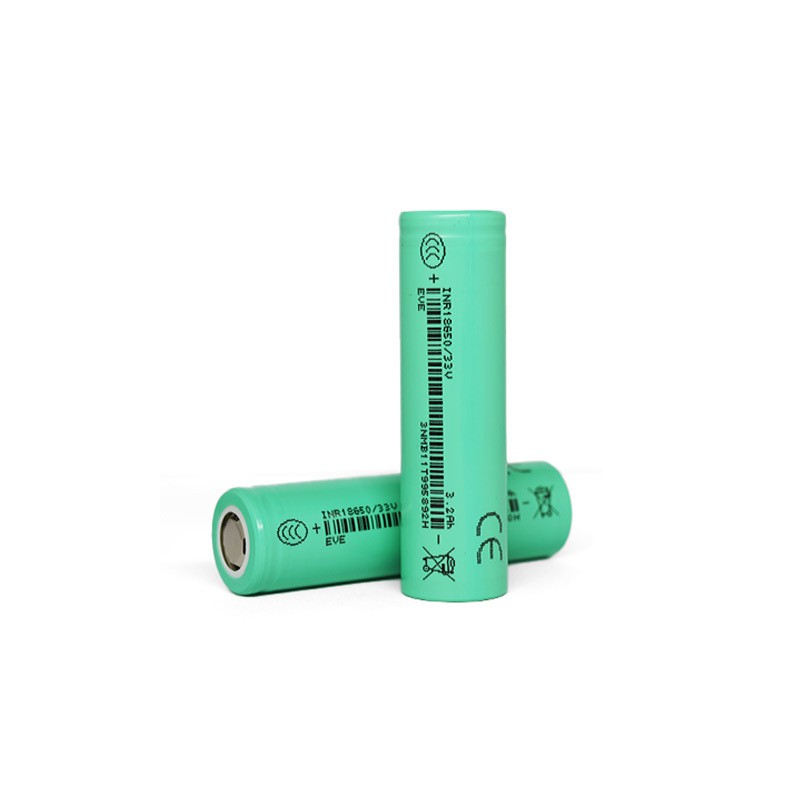

3.6V 18650 3300mah Li Ion Cell

Product Item : LNC18650-33V
Category： NMC Cells
Model: LNC18650-33V
Voltage: 3.6V
Capacity: 3300mAh
Brand: EVE
Product description：The 3.6V 18650 3300mAh Li-ion Battery Cell offers high capacity and reliable performance for applications such as electric vehicles, robots, and portable energy storage. This rechargeable battery prov
INQUIRY EMAIL

Product Specifications

Item	Specification
Nominal Discharge Capacity	3200mAh Charge: 0.62A, 4.20V, CCCV 62mA cut-off Discharge: 0.62A, 2.50V DC cut-off
Minimum Discharge Capacity	3100mAh Charge: 0.62A, 4.20V, CCCV 62mA cut-off Discharge: 0.62A, 2.50V DC cut-off
Nominal Voltage	3.60V
Standard Charge	CCCV, 0.62A, 4.20±0.05V, 62mA cut-off
Rapid Charge	CCCV, 1.55A, 4.20±0.05V, 155mA cut-off
Standard Discharge	DC, 0.62A, 2.50V cut-off
Max. Continuous Discharge Current	DC, 10A, 2.50V cut-off
Charge/Discharge Voltage Range	4.20~2.50V
Cell Weight	48.0g Max

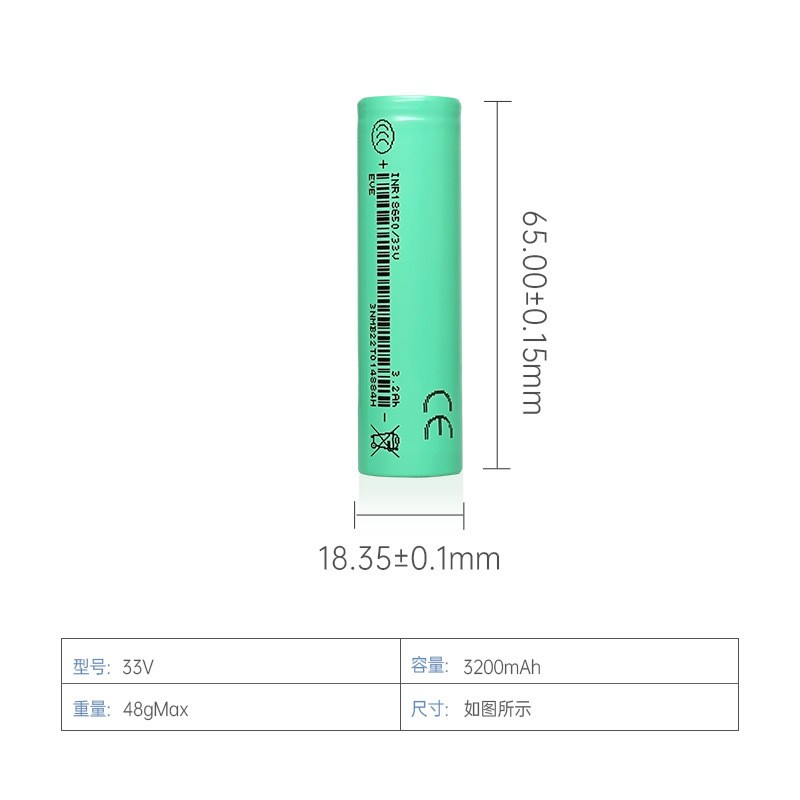

Cell Dimensions	Height: 65.00±0.15mm Diameter: 18.35±0.10mm
Operation Temperature (Cell Surface Temperature)	Ambient Temperature Charge: 0 to 45 ℃ Discharge: -20 to 60℃ Charge Temperature: 0 to 60℃ (recommended recharge release <45℃) Discharge Temperature: -20 to 70℃ (recommended re-discharge release <60℃)
Storage Temperature (At Shipping SOC)	1 year: -20~25℃ 3 months: -20~45℃ 1 month: -20~60℃
