  • Ni-MH AA 6V 2400mAh With EL 2P Connector-SKU9

Ni-MH AA 6V 2400mAh With EL 2P Connector-SKU9

  • Product Item : LNC-NM-5S1P2.4AH-SKU-9
  • Category： Ni-MH Battery Packs
  • Model: LNC-NM-5S1P2.4AH-SKU-9
  • Voltage: 6.0V
  • Capacity: 2400mAh
  • Brand: LNC
  • Product description：
  • INQUIRY   EMAIL

Battery Specifications & Safety Guidelines

Model: 6.0V 2400mAh Ni-MH Battery Pack

 Product Specifications

Battery Specifications

Item Specification
Product Name 6.0V Ni-MH Battery Pack
Nominal Voltage 6.0V
Nominal Capacity 2400mAh
Cell Type Nickel-Metal Hydride (Ni-MH)
Configuration Options Linear Arrangement
2+3 Arrangement
1+4 Arrangement

Linear Arrangement Specifications

Parameter Value
Weight Approx. 111.0 g
Dimensions (L × W × T) 71.0 × 51.0 × 14.2 mm

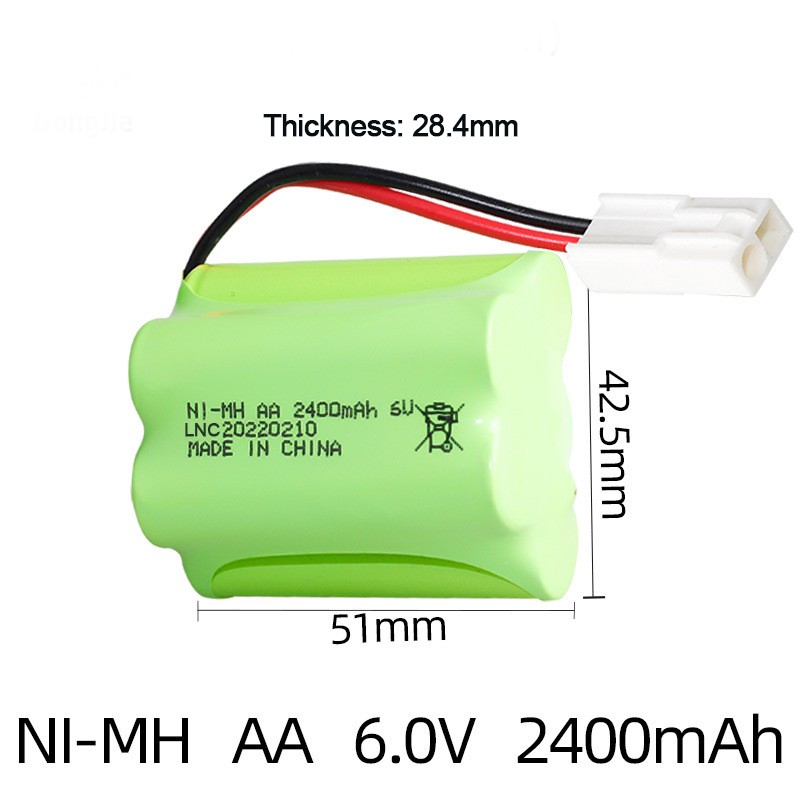

2+3 Arrangement Specifications

Parameter Value
Weight Approx. 111.0 g
Dimensions (L × W × T) 51.0 × 42.5 × 28.4 mm

1+4 Arrangement Specifications

Parameter Value
Weight Approx. 111.0 g
Dimensions (L × W × T) 51.0 × 56.8 × 28.4 mm



Battery Status Reference

Cell Voltage Remaining Capacity Status Indicator
1.44V 100% Full
1.30V 75% Good
1.20V 50% Medium
1.10V 25% Low
0.90V 5% Critical
0.80V 0% Empty

IMPORTANT SAFETY WARNING

For Ni-MH Battery: Do NOT let a single cell's voltage drop below 0.8V — this will cause permanent damage or total battery failure.

Charging Parameters

Charging Current Range Charging Time Formula
≤ 5% of Capacity Battery capacity (mAh) × 1.6 ÷ Charging current (mA)
5% - 10% of Capacity Battery capacity (mAh) × 1.5 ÷ Charging current (mA)
10% - 15% of Capacity Battery capacity (mAh) × 1.3 ÷ Charging current (mA)
15% - 20% of Capacity Battery capacity (mAh) × 1.2 ÷ Charging current (mA)
> 20% of Capacity Battery capacity (mAh) × 1.1 ÷ Charging current (mA)

Usage Precautions

  • Charging Safety: Keep away from flammable materials during charging
  • Damaged Batteries: Dispose immediately — do NOT reuse
  • Avoid Short Circuits: Risk of combustion/explosion
  • Unattended Operation: Never charge/discharge without supervision

Liability & Warranty

  • Non-compliance liability rests with user
  • Manual overcharging damage not covered
  • Purchase implies acceptance of terms
  • Follow guidelines for safe operation

Temperature Guidelines

  • Charge only within 0–45°C
  • Avoid cell overheating above 60°C
  • Keep away from heat sources
  • Store in cool, dry place

CHARGING PRECAUTIONS

Use only NiMH/NiCD-specific chargers. Do NOT use Li-ion chargers. Never charge batteries unsupervised. Ensure charging surface is heat-resistant.

Detailed Safety Guidelines

Storage & Handling

  • Keep away from liquids and damp environments
  • Store out of children's reach
  • Perform charge-discharge cycle every 3 months for unused batteries
  • Check voltage before charging/use

Safety Warnings

  • Do NOT disassemble battery pack or modify wiring
  • Do NOT short-circuit the battery
  • Do NOT touch leaking batteries
  • If electrolyte contact occurs, rinse immediately with water
